AAMA 501.2 Spray Testing: Ensuring Water Infiltration Compliance for Construction and Waterproofing Projects

Water damage is one of the most costly and preventable problems in construction. From windows and curtain walls to sealed glass assemblies and sealant joints, even a minor failure in a building's envelope can lead to thousands of dollars in structural repairs, mould remediation, and warranty claims. That's why many clients in the construction and waterproofing industries are now requesting AAMA 501.2 spray testing as a critical step in their quality assurance process.

In this post, we'll break down what the AAMA 501.2 standard is, how the spray test works, who needs it, and why it's one of the most effective tools available for catching water infiltration problems before they become expensive disasters.

What Is AAMA 501.2?

AAMA 501.2 is a published standard by the American Architectural Manufacturers Association (AAMA) titled Field Check of Metal Storefronts, Curtain Walls, and Sloped Glazing Systems for Water Leakage. It defines a specific field-test methodology for evaluating whether installed glazing systems, windows, sealant joints, and related assemblies are performing as designed — keeping water out.

Unlike laboratory testing, AAMA 501.2 is a field test, meaning it's performed directly on the completed building or structure. This is critically important because even a product that passes factory testing can fail when improperly installed in the field. The standard simulates real-world rainfall conditions and pressurises the assembly to detect any pathways where water can penetrate.

What Does the AAMA 501.2 Spray Test Involve?

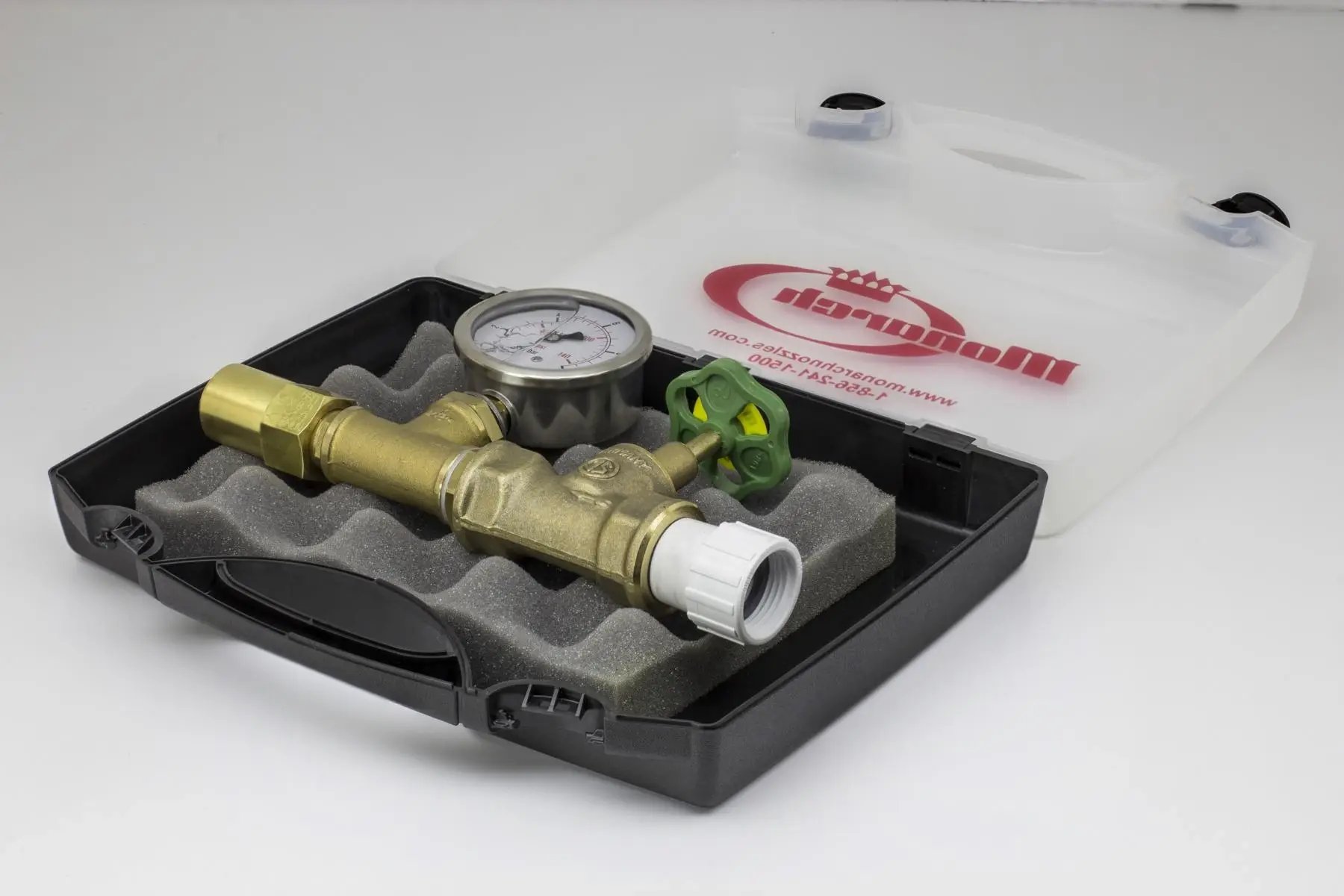

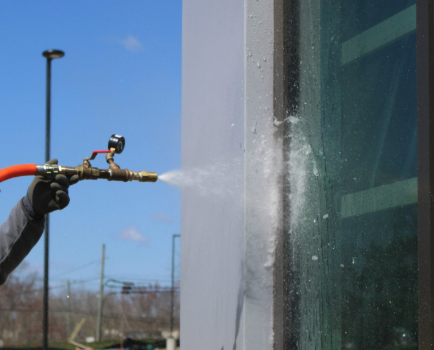

The AAMA 501.2 test uses a calibrated nozzle that delivers water at a controlled rate and pressure across the exterior surface of the building assembly being tested. The test is applied to areas including:

• Exterior windows (fixed and operable)
• Curtain wall and storefront systems
• Sealed glass panels and glazing assemblies
• Sealant joints between building components
• Any area of the building envelope where water infiltration is a concern

During the test, a technician simultaneously inspects the interior side of the assembly for any signs of water leakage — drips, staining, moisture accumulation, or pooling. Locations where water penetration is detected are documented and reported so contractors can address deficiencies before they lead to long-term damage.

The test follows strict protocols for water delivery rate, nozzle distance, and duration to ensure repeatable, defensible results that meet compliance standards.

Why Are Clients in Construction and Waterproofing Requesting This Test?

We've seen a growing demand for AAMA 501.2 testing from clients across construction and waterproofing for several key reasons:

1. Contractual and Code Compliance

Many project specifications, architectural drawings, and building contracts now explicitly require AAMA 501.2 testing as part of the quality assurance and commissioning process. General contractors and building owners need documented proof that the building envelope has been tested and is performing to the required standard.

2. Early Detection of Sealant Failures

Sealant is one of the most common points of failure in a building's exterior. Application errors, material incompatibility, surface contamination, and improper joint design can all lead to premature sealant failure. AAMA 501.2 testing catches these failures immediately after installation — long before they result in interior water damage or mould growth.

3. Reducing Costly Repairs

The cost of identifying and correcting a sealant failure during construction is a fraction of what it costs to repair water damage after occupancy. A failed window seal that costs $500 to reglaze during construction can lead to $15,000 or more in drywall replacement, mould remediation, and structural repair once a building is occupied. AAMA 501.2 testing is a smart investment in preventing those downstream costs.

What Happens After the Test?

After testing is complete, a detailed report is issued that includes the locations tested, the testing parameters used, any observed water infiltration, and photographic documentation. This report can be submitted to the project owner, architect, or building authority as evidence of compliance.

If deficiencies are found, the report provides clear guidance on exactly where remediation is needed. After repairs are made, a retest can be performed to confirm the fix was successful and document the corrected performance.
